Enco Toll
Toll Road Transaction System Equipment

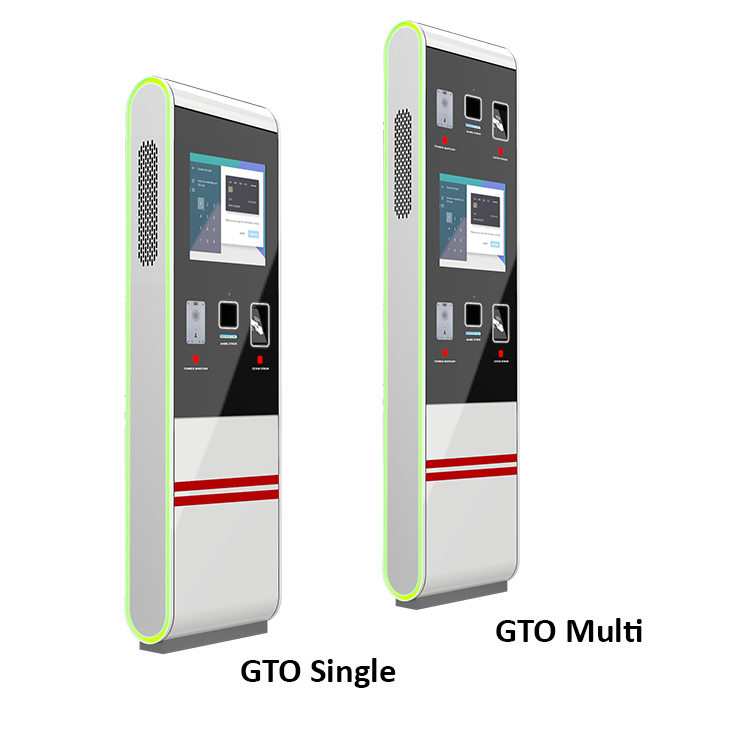

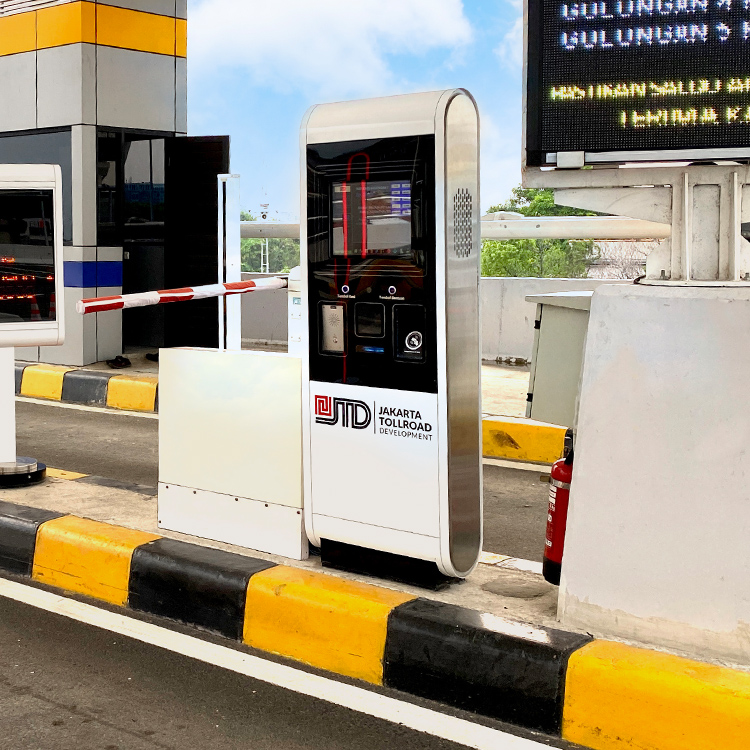

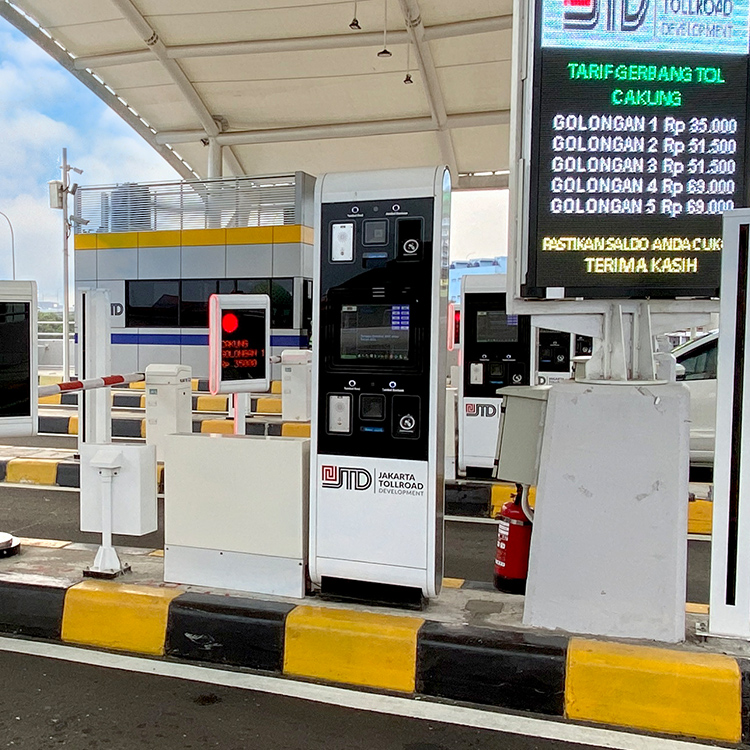

GTO
Gardu Toll Otomatis
GTO is a device to perform the data verification
process and respond to the data in the processes and protocols of the Bank that has been predetermined with data writing accuracy 99.99% and transaction speed 1-2 seconds.
99%
1 - 2 Sec
2 GB

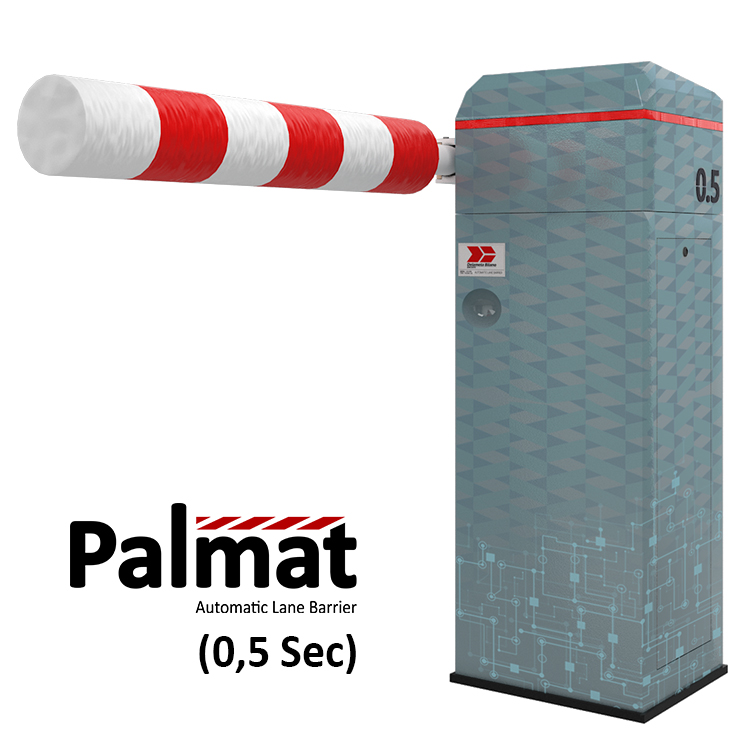

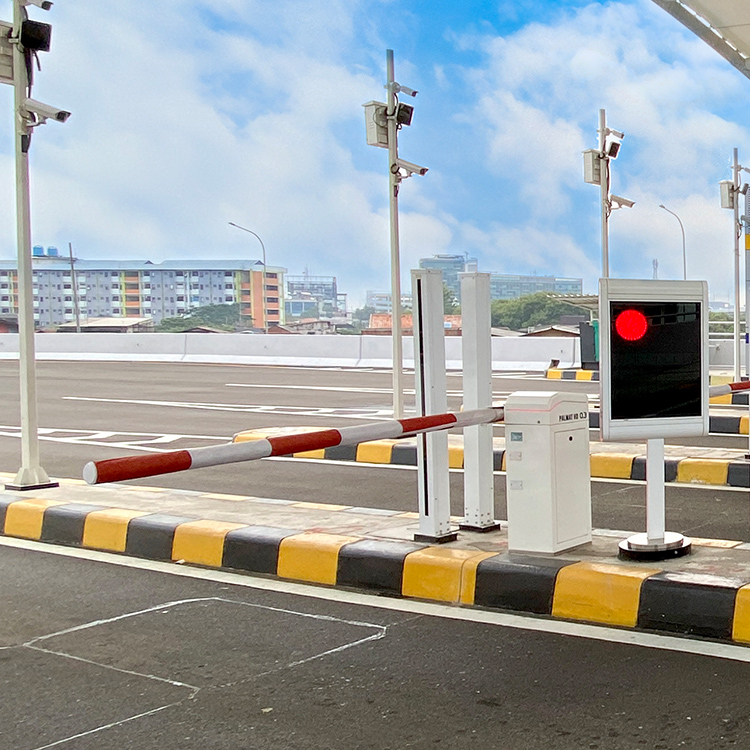

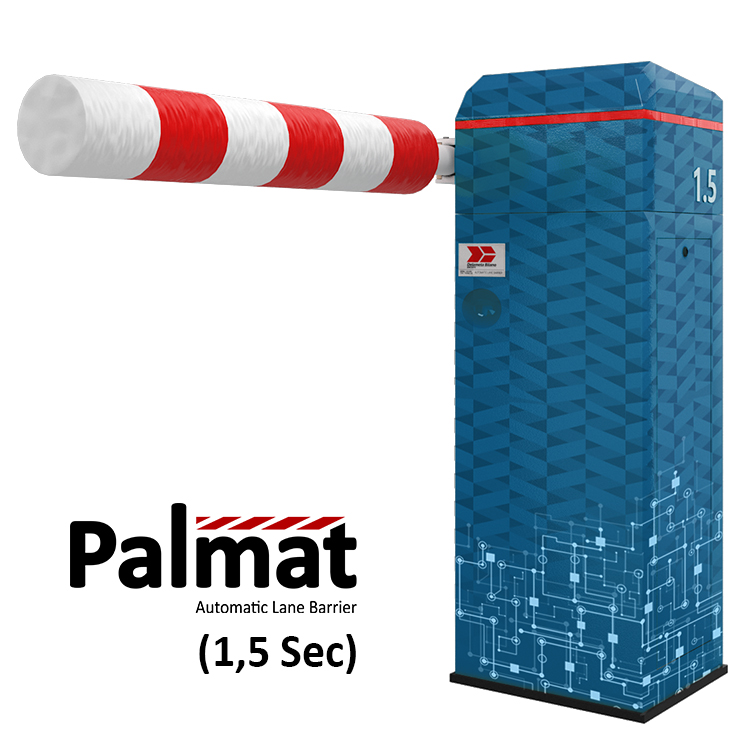

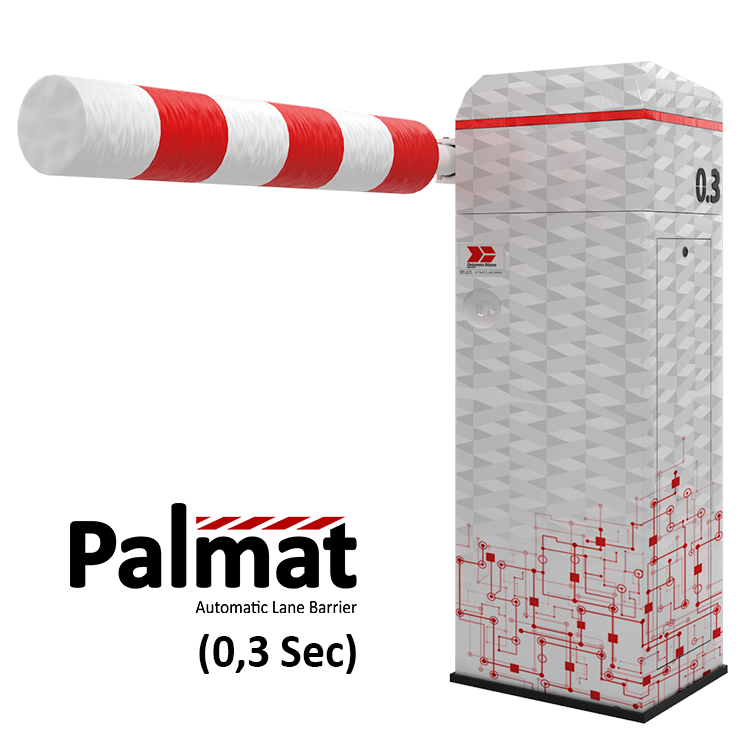

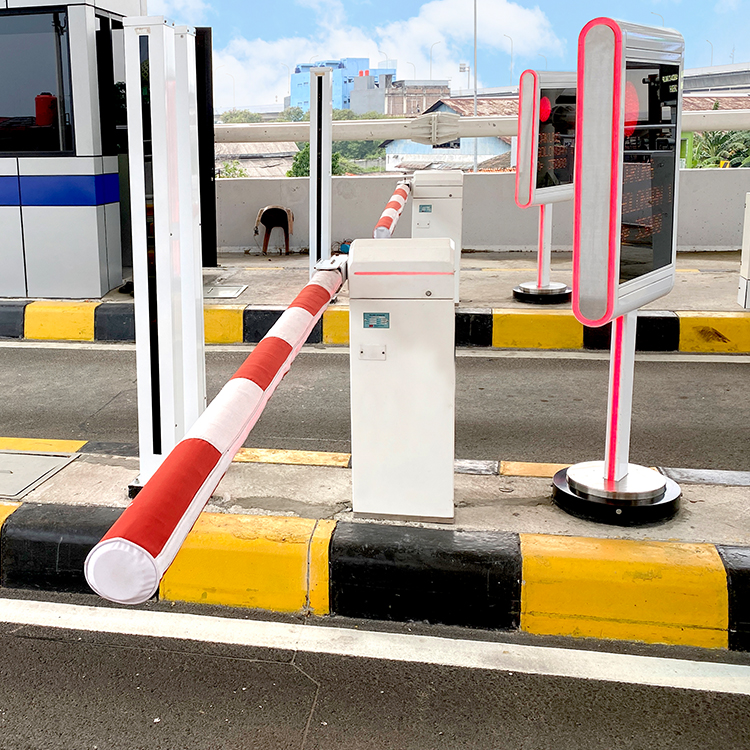

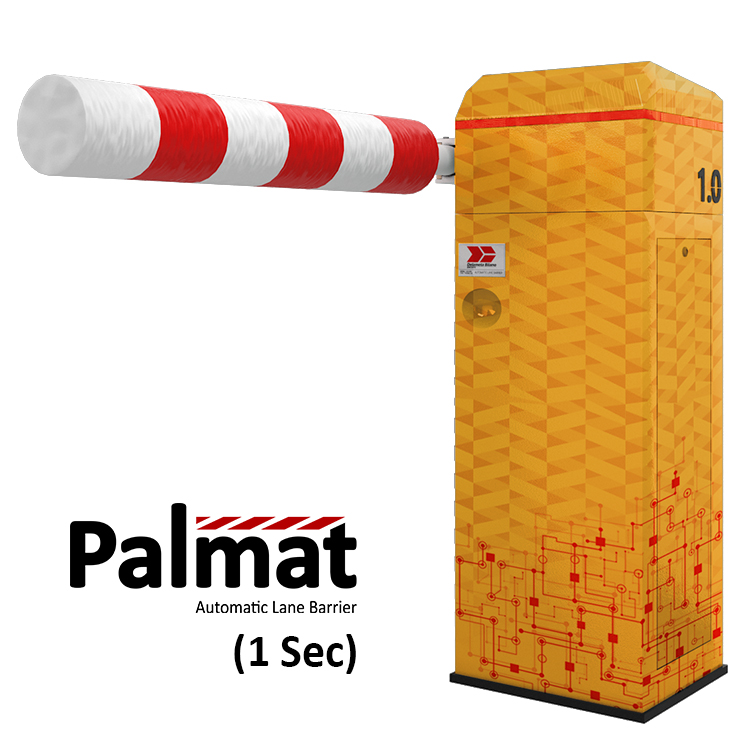

PALMAT
Palang Otomatis
Palmat – Automatic Lane Barrier (ALB) is a tool equipped with a door or ARM cross that is mounted on a toll booths column that serves as a lane barrier. This equipment has the speed of open and close time 0.3 second without a beat, will open automatically in case of Power-off. The barrier is equipped with LXD Sensor as a safeguard, ensuring the area under ARM is no vehicle (object) crossing. It has been tested reliability field and is suitable for those who need a lot of transaction speed.
0.3 Sec
2,5 M
IP65

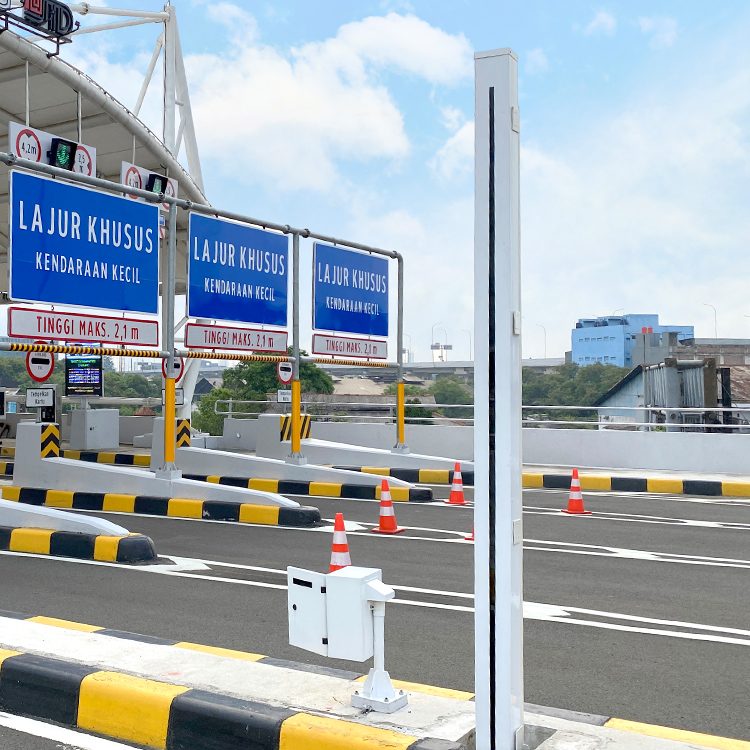

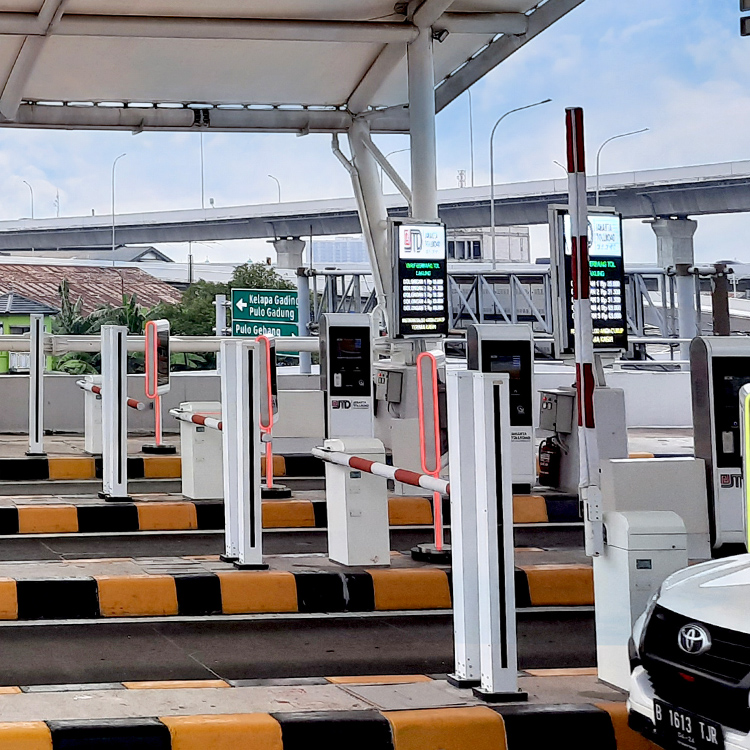

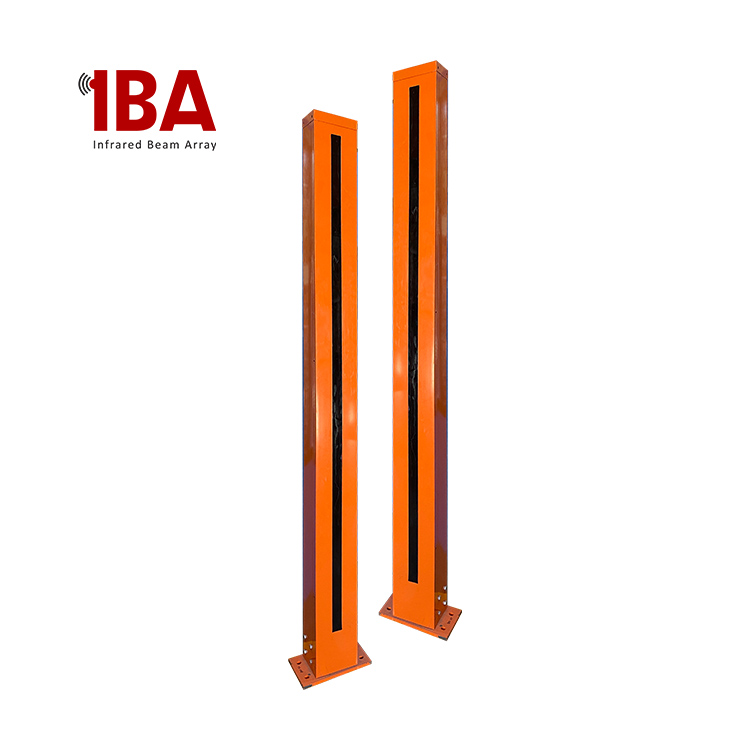

IBA
Infrared Beam Array
IBA is an optical Sensor that is one of the devices in the transaction system in the toll booths to detect vehicles by implementing a profile scanner system. IBA has two parts, namely transmitter and receiver. The scanning process is done continuously between the transmitter and receiver, using some of the main components of Infrared (transmitter) and Photodiode (receiver). This Infrared and Photodiode Sync, will turn on alternately (one by one) with the synchronization of Infrared and other Photodiode, in which the turns on this alternating process is done at a high speed. As an indication, when the IBA is blocked by the vehicle, there will be indications of LEDS lit on the receiver device.
20 m
40 m/s
IP65

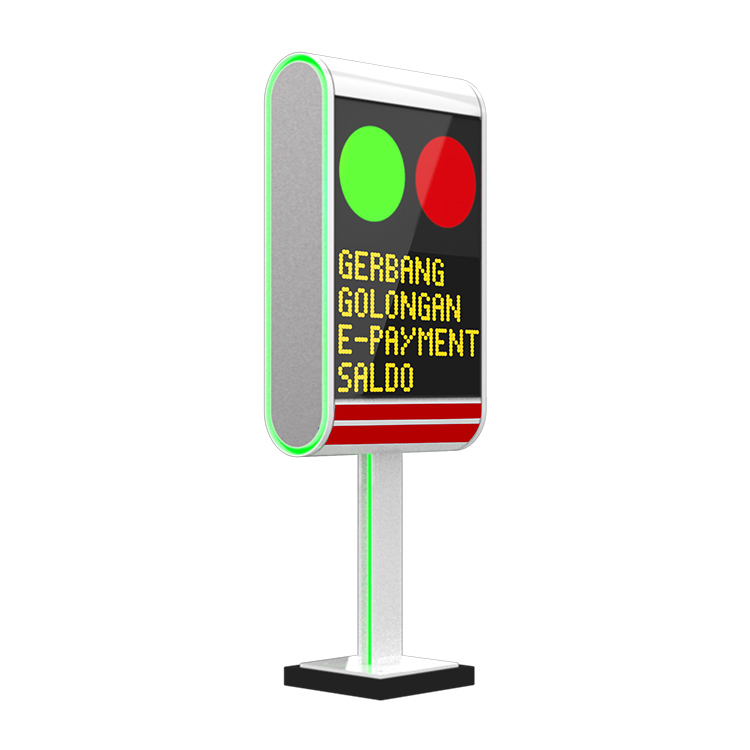

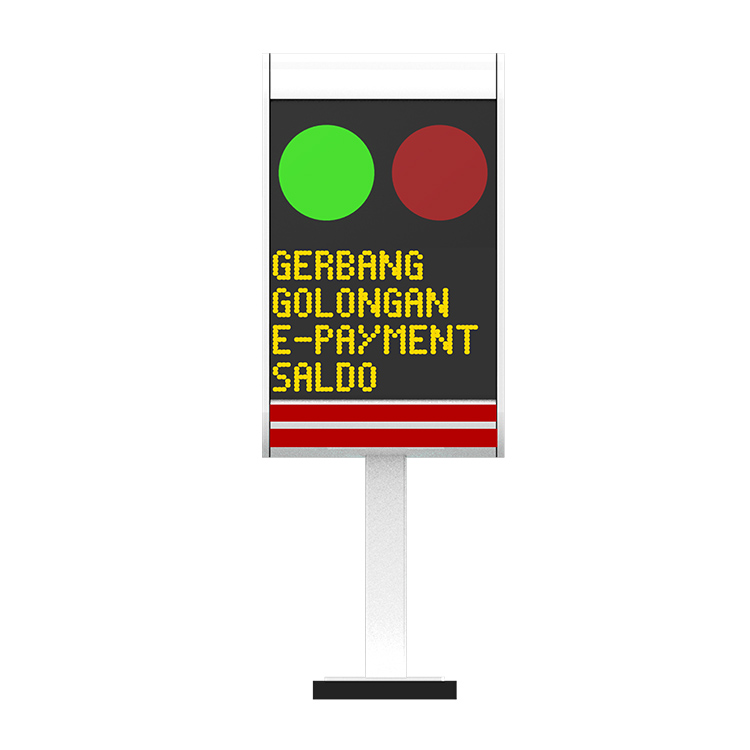

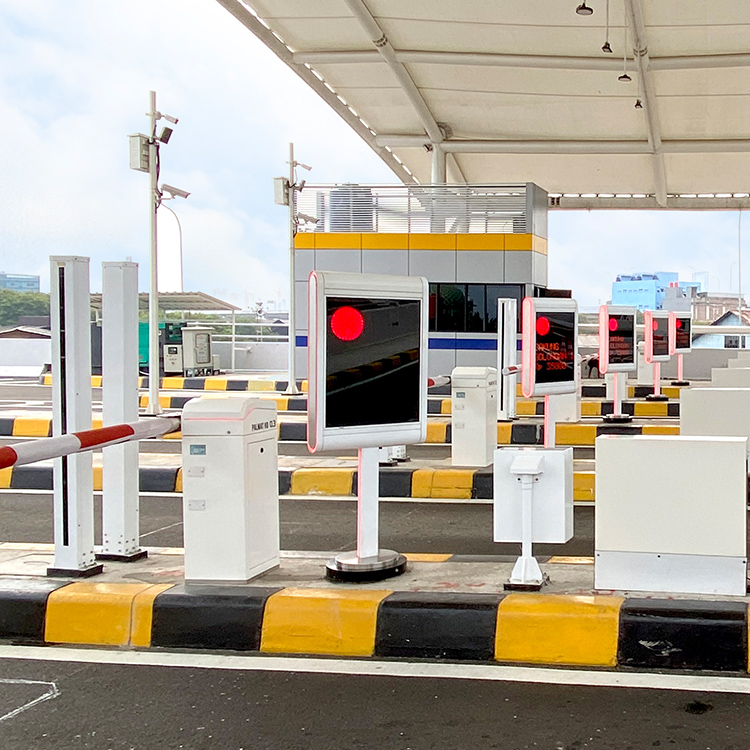

CDP
Customer Display Panel
CDP function is to provide information to road users. Information conveyed to road users consist of gate of origin of the transaction, vehicle class, tariff and balance value on the E-Payment transaction. CDP is installed behind the transaction substation. Inside the CDP is the Low Traffic Lights (LLB) module.
5 mm
LED
120 cm

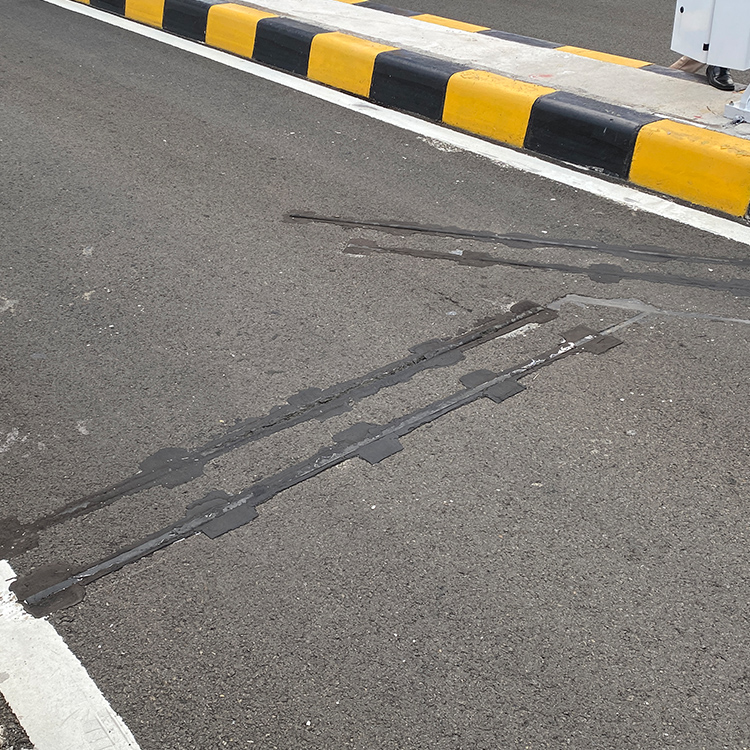

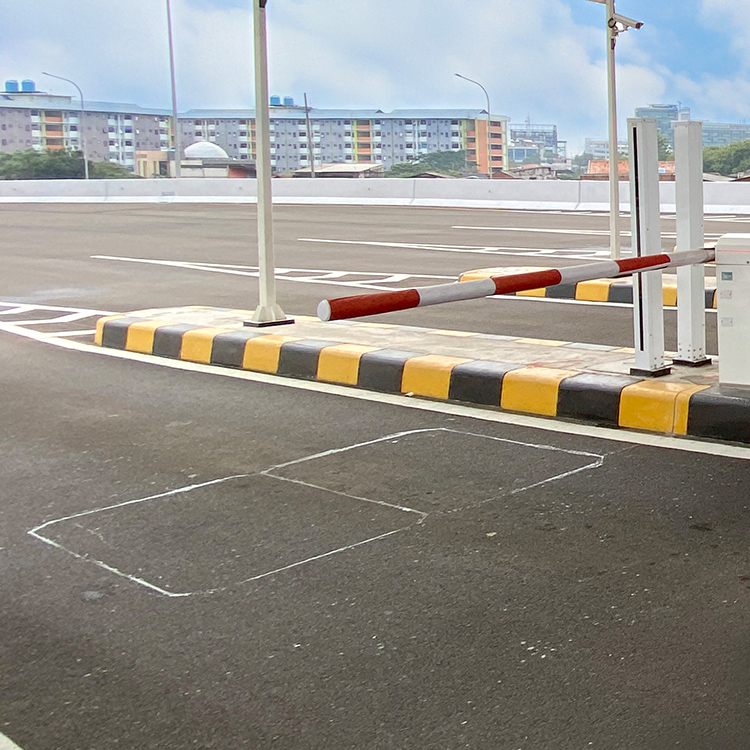

Sensor
Counting vehicle axles, counting the number of car tires in one axle
Vehicles Wheels
Piezo Electric
Microcontroller AVR

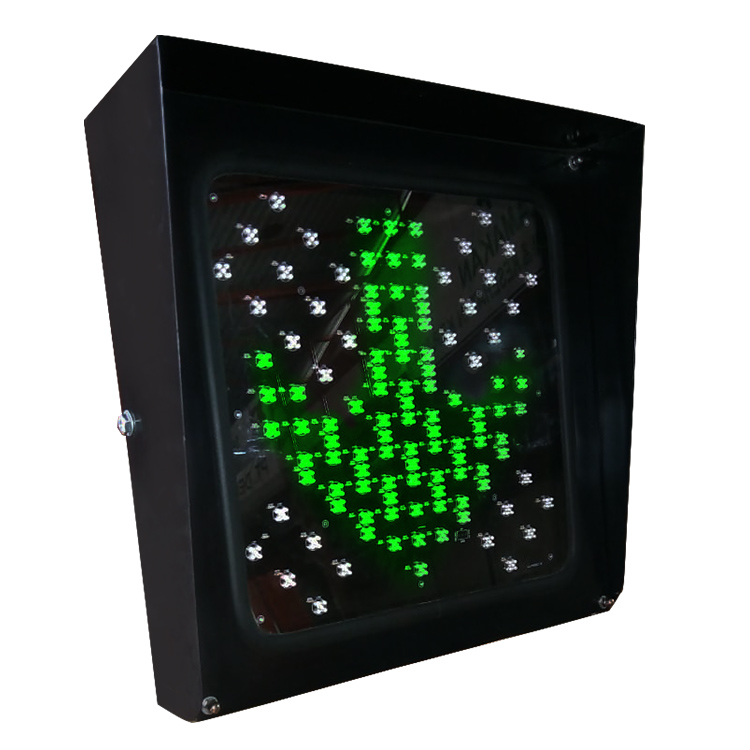

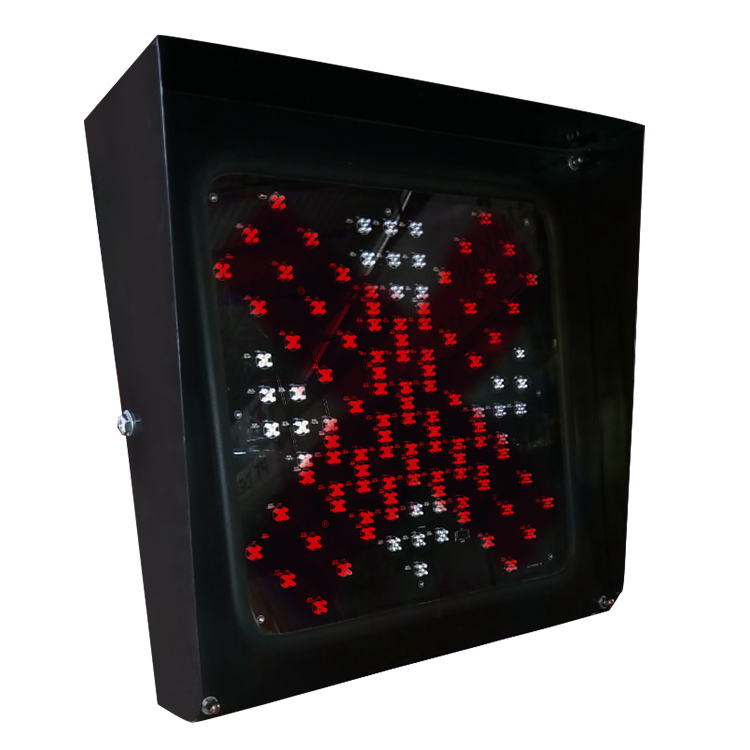

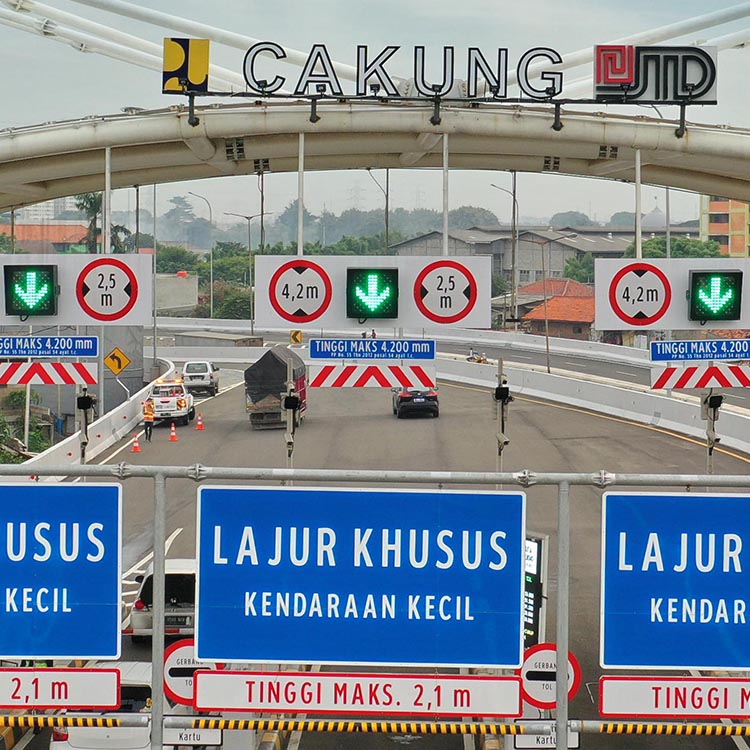

LLA
Upper Traffic Light
LLA displays the lane status to road users, A green arrow means the lane is ready to serve transactions, while a red cross indicates that the lane cannot serve transactions.
Water Proof
LED Super Bright
Zoom3 Pin 19mm
Centralized ALPR
Centralized Automatic Licensed Plate Recognition
Centralized Automatic Licensed Plate Recognition (ALPR) equipment consists of CPU Controller equipment, Storage Server, Centralized AI Application Server, CCTV monitoring ALPR, Network Devices, and also Usage Applications.
Progressive Scan
CMOS
IR Iluminator 30 Angle with 220m approx range
Zoom Box
Camera
